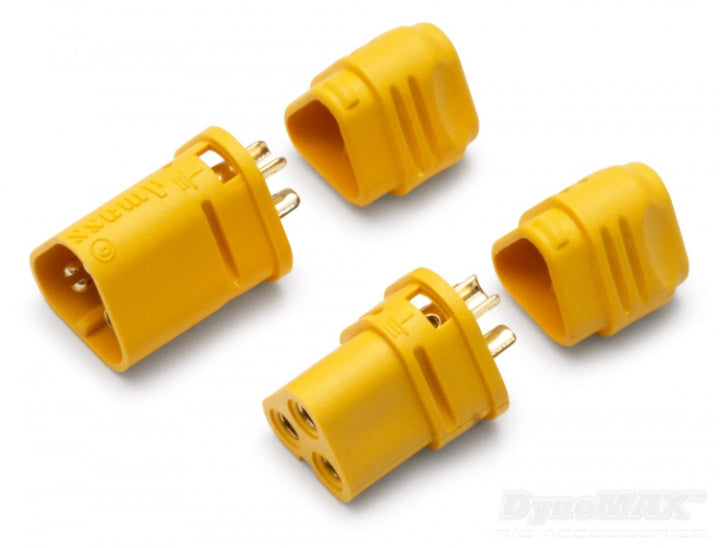

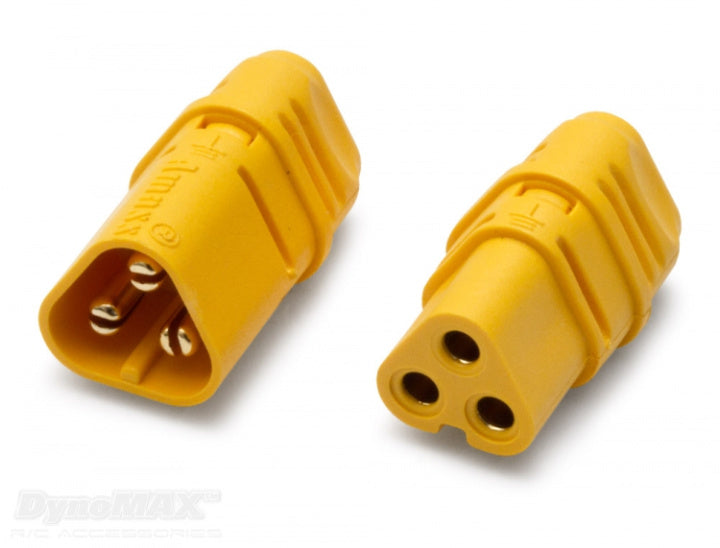

The D-Max Connector MT30 Pair is a 3-pin plug connection specifically engineered for demanding electronic applications where a secure and compact connection is essential. It guarantees reliable signal and power transmission between components, boards, or subsystems in areas such as model building or prototype development. This connector system is perfect for projects where precise solder connections and high mechanical stability are crucial to ensure signal integrity even under stress.

Key Features

• Three-pole design for simultaneous transmission across three circuits, ideal for connecting brushless motors or other multi-phase systems.
• Gold-plated 2mm contacts ensure low contact resistance, excellent conductivity, and protection against corrosion.
• The housing provides a reverse-polarity protected connection, mechanically preventing incorrect mating and thus safeguarding connected electronics.
• Designed for solder mounting, allowing for a durable and electrically stable attachment of cables to the contacts.
• Compact design and a very low weight of only 2 grams per pair, optimal for applications with limited space and strict weight requirements.
• The robust plastic housing fully encloses the solder joints, providing enhanced mechanical stability and strain relief for the cables.

Technical Specifications

• Manufacturer: D-MAX
• Manufacturer Part Number: B9332
• Number of Poles: 3
• Contact Diameter: 2 mm
• Maximum Conductor Diameter (stripped): 1.6 mm
• Maximum Cable Outer Diameter (incl. insulation): 3 mm
• Dimensions (mated): 10.2 x 10.7 x 30.6 mm
• Weight (pair): 2 g

Scope of Delivery

• 1x MT30 Male Connector
• 1x MT30 Female Connector

Application

This connector pair is ideal for use in RC model building, especially for connecting brushless motors to electronic speed controllers (ESCs) in drones, airplanes, or vehicles. Assembly requires basic soldering skills to create a secure and durable electrical connection.
